Step into the future of industrial sewing with the JACK JK-58 A Series—where precision, intelligence, and durability converge. This isn't just a machine; it's your automated partner for flawless, high-speed stitching on everything from delicate fabrics to heavy-duty materials. Designed for the modern factory, it combines robust double transport feeding with smart, energy-saving technology to maximize your output while minimizing costs. Why just stitch when you can master every seam with unwavering consistency?
Key Specifications
⚙️ Advanced 2-Needle Lockstitch System: Double transport (tooth-needle) feed ensures perfect fabric handling without puckering or shifting.
🔄 Flexible Automation: Choose from standard to fully automatic models, with optional needle turn on/off for unparalleled versatility.
🛡️ Closed Lubrication System: Eliminates oil stains and reduces consumption. Enjoy cleaner operation and spotless materials.
💡 Smart LED Lighting: 3-step adjustable workspace illumination for enhanced visibility and precision.
🌱 Eco-Efficient Servo Motor: Direct Drive technology cuts energy costs and noise, creating a healthier, more productive workshop.
🎯 All-in-One Computerized Features: Built-in Thread Trimmer, Bartack, Foot Lifter, and Wrapper for seamless workflow integration.
🗣️ User-Friendly Tech: Voice guidance, oil indicator, auto cornering, and electro-pneumatic release for effortless operation.

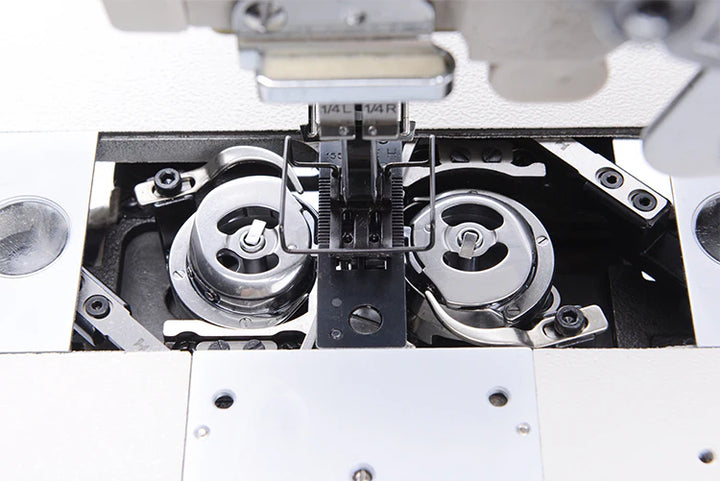

🧵 Adaptable Hook System: Standard or enlarged hooks available to match your specific material needs—from light synthetics to heavy canvas or leather.
Types – Jack 58420 small hook fixed needles, Jack 58450 small hook disengage able needles, Jack 58720 large hook fixed needles, Jack 58750 large hook disengage able needles.
Auto Cornering – After the manual release of the needle, the machine sews the number of stitches set on the display with only 1 needle and stops automatically to allow us to turn the work. It is now possible to resume sewing with the pedal, the machine will automatically lower the second needle after making the preset number of stitches with a single needle.

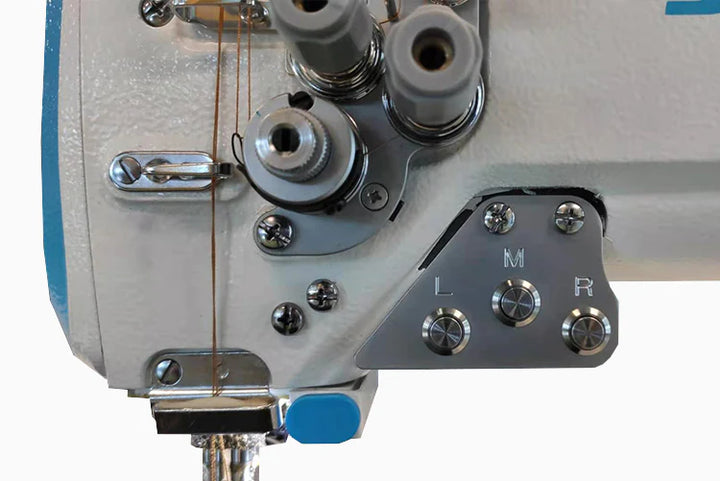

Electro-Pneumatic Release – Through this new mechanism for disengaging the needles controlled by solenoid valves, the release of the needle is faster and safer even at high speeds, unlike the mechanical lever.
Short Thread – The thread trimmer cut the thread within 3 mm, automatic stitch closure to prevent thread loosening, no need to cut the remaining thread, saving time and cost.
Electronic Tension – The tension disc openers are regulated electronically and no longer mechanically by means of a steel cable, this allows you to adjust the times and any delays.

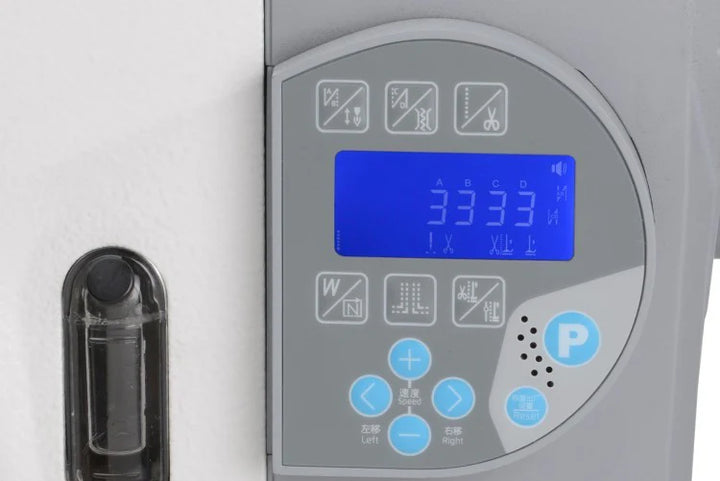

Voice Guide – The machine will teach you the various functions itself, if there are errors it will notify you and by clicking the VOICE button it will suggest how to solve the problem, moreover with a single reset button you can return to the initial settings.
Integrated Foot Lifter – In addition to the thread trimmer, bartack and thread wiper devices, the automatic presser foot lifter is integrated into the body of the machine, making it safe, quiet and beautiful to look at.
Single Shaft Motor – The internal design of the shaft motor on a single axis, allows to reduce the torque, effectively reducing vibrations and making its stroke stable, fast and silent.

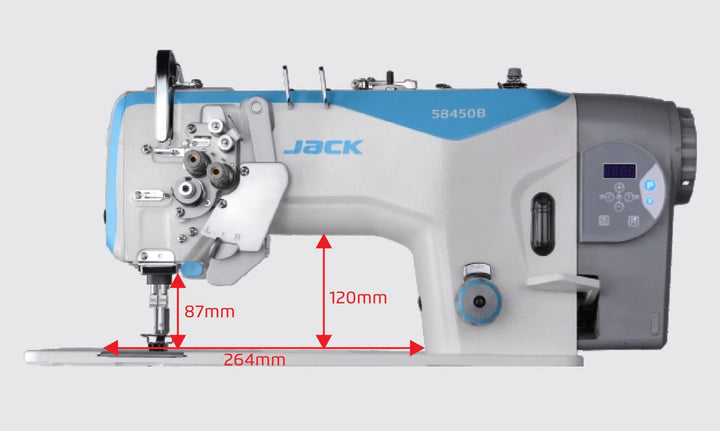

Big Space – 264mmx120mm, increases the workspace, facilitating the rotation of garments for various types of fabrics.
Self-Cooling Handwheel – The shape of the internal handwheel allows the air to circulate efficiently, reducing the engine temperature and increasing the life of the electronic components.
LED Light – 3 levels of LED light, offer a constant non-dazzling light that allows less strain on the eyes in sewing and threading operations.
Direct Drive Motor – 750W eco motor, allows better needle penetration and guarantees a 71% energy saving compared to other Motors.
Industry 4.0 – Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines
Jack JK-58 Machines Specifications
Model
|
Needles
|
Stitch Length (mm)
|
Presser Foot Lift (mm)
|
Sewing Speed
(Stitches / Min)
|
Organized Split Needle Bar
|
Large Hook
|
WITHOUT AUTOMATIC FUNCTIONS
|
| JK-58420-003 |
DPX5 11-16# |
4 |
7-13 |
4000 |
|
|
| JK-58420-005 |
DPX5 14-22# |
5 |
7-13 |
3000 |
|
|
| JK-58450-003 |
DPX5 11-16# |
5 |
7-13 |
3000 |
Yes |
|
| JK-58450-005 |
DPX5 14-22# |
5 |
7-13 |
3000 |
Yes |
|
| JK-58720-003 |
DPX5 11-16# |
7 |
7-13 |
3000 |
|
Yes |
| JK-58720-005 |
DPX5 14-22# |
7 |
7-13 |
3000 |
|
Yes |
| JK-58750-003 |
DPX5 11-16# |
7 |
7-13 |
3000 |
Yes |
Yes |
| JK-58450-005 |
DPX5 14-22# |
7 |
7-13 |
3000 |
Yes |
Yes |
WITH AUTOMATIC FUNCTIONS
|
| JK-58420J-403 |
DPX5 11-16# |
4 |
7-13 |
4000 |
|
|
| JK-58420J-405 |
DPX5 14-22# |
5 |
7-13 |
3000 |
|
|
| JK-58450J-403 |
DPX5 11-16# |
5 |
7-13 |
3000 |
Yes |
|
| JK-58450J-405 |
DPX5 14-22# |
5 |
7-13 |
3000 |
Yes |
|
| JK-58720J-403 |
DPX5 11-16# |
7 |
7-13 |
3000 |
|
Yes |
| JK-58720J-405 |
DPX5 14-22# |
7 |
7-13 |
3000 |
|
Yes |
| JK-58450J-403 |
DPX5 11-16# |
7 |
7-13 |
3000 |
Yes |
Yes |
| JK-58750J-405 |
DPX5 14-22# |
7 |
7-13 |
3000 |
Yes |
Yes |
