Jack C7-5-03/233 Computerized Five Thread Overlock Sewing Machine with Voice Guide

LE 38,500.00

Computerized overlock machine for all types of fabric

||||

HURRY! ONLY LEFT IN STOCK.

Description

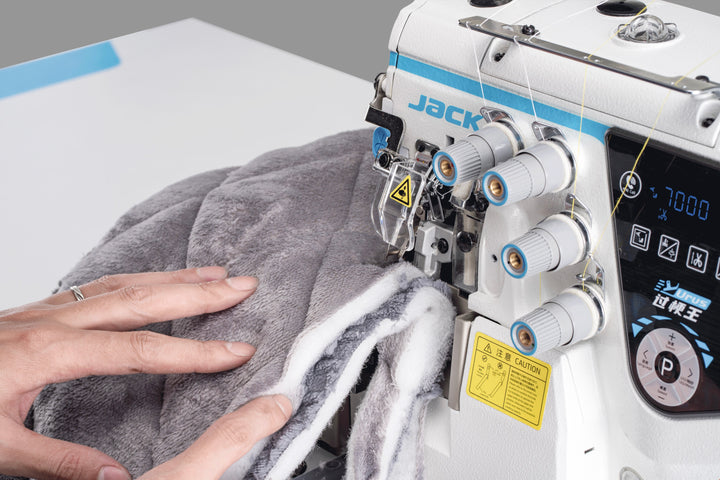

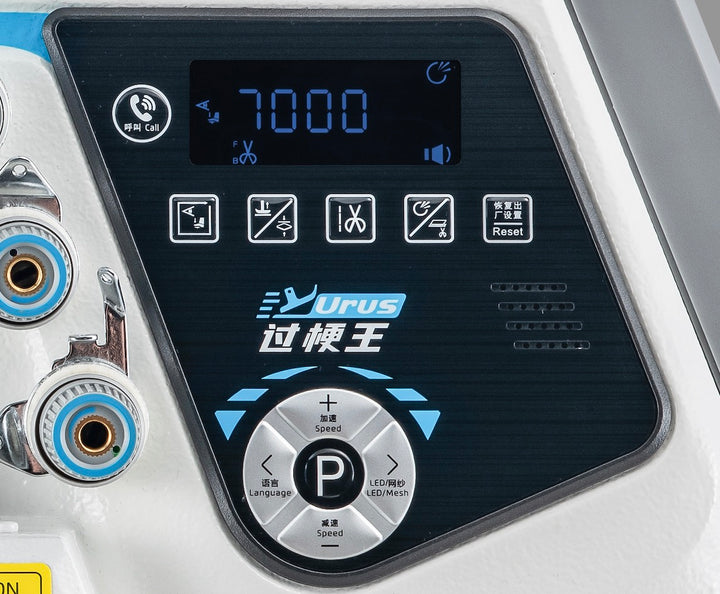

Overlock JACK C7 has a work area lighting (LED diodes) with a 3-step adjustment option and an easy-to-use panel for managing automatic functions: Lifting the Presser Foot, Cutting the Chain Before and After sewing, positioning the needles.
The automatic functions of the machine can operate in three modes: Manual, Semi-Automatic, Automatic.
Overlocks C7 do not require connection to compressed air. All mechanisms related to automatic functions are electrically controlled.
Technical parameters: Sewing Speed: 7000 stitches/min, Presser Foot Lifting Height: 5 mm, Possibility of Positioning the Needles Integrated LED Backlighting

Key Specifications:

⚙️Model: JACK C7-5-03/233 Industrial Overlock
⚡ Sewing Speed: 7,000 SPM (Ultra-high speed)
🧵 Stitch Type: 5-Thread Safety Stitch (2 needles + 3 loopers)
📏 Stitch Length: 0.8-3.8 mm (Adjustable)
📐 Stitch Width: 5×5 mm
📊 Differential Feed: 0.7-2.0 ratio
🛠 Technical Specifications:
Needle Type: 14# industrial needles
Presser Foot Lift: 5 mm
Thread Capacity: 5 threads
Needle Gauge: 5 mm
🏭 Ideal For: Medium to heavy-weight fabrics, perfect for garment manufacturing and textile production requiring high-speed safety stitching.
AI-Based Transport System – Real-time detection of material thickness changes. AI-calculated correlation of clamping and transport forces. Sewing of various connections: thick, thin, flexible, hard, etc. at full speed.
Different Material Thicknesses – Real-time automatic pressure change technology.
LINGXI Technology – Intelligent transport system with automatic adjustment to the material.

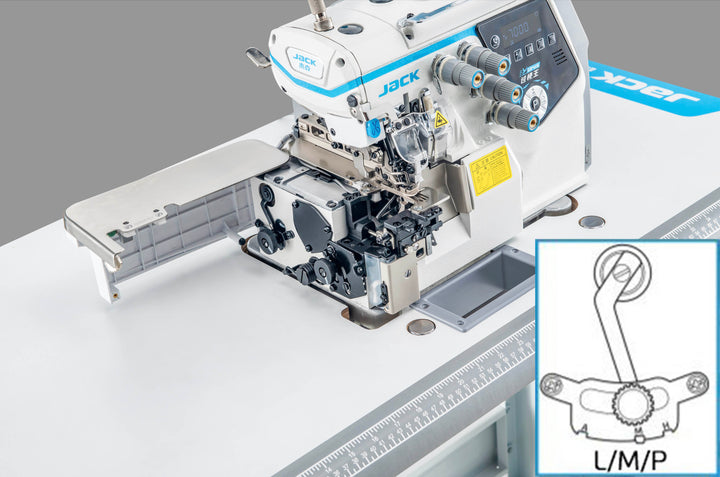

Different Material Thicknesses – Machines equipped with a special lever that allows easy adjustment of the transport teeth depending on the type of materials being sewn.


Jack C7 Machines Specifications

Model

Needles

Number of Needles

Number of Threads

Needle Gauge (mm)

Stitch Width (mm)

Stitch Length (mm)

Differential Transport

Presser Foot Lift (mm)

Sewing Speed (stitches/min)
C7-3-02/233 11# 1 3 / 4 0.8-3.8 0.7-2 6 7000
C7-4-M03/333 11# 2 4 2 2x4 0.8-4.6 0.7-2 10 7000
C7-5-03/233 14# 2 5 5 5x5 0.8-3.8 0.7-2 5 7000
C7-5-03/333 14# 2 5 3 3x4 0.8-3.8 0.7-2 5 7000
C7-5-53/233 14# 2 5 3 3x4 0.8-3.8 0.7-2 5 7000
C7-5-M04/435 19# 2 5 5 5x6 0.8-5 0.8-1.5 7 6000
C7-6-03/333 11# 3 6 3x2 3x2x4 0.8-3.8 0.7-2 5 7000
C7-6-53/233 14# 3 6 3x2 3x2x4 0.8-3.8 0.7-2 5 7000
C7-6-M04/435 19# 3 6 5x2.5 5x2.5x3.5 0.8-5 0.8-1.5 7 6000
