Jack JK-M5+-F13F25-X Industrial Drawing Machine – 800×350 mm, Suction Fabric Holder & Thread Cutting Sensor
drawing machine
||https://drive.google.com/file/d/1PFGfaCuzvzyQy448dwrjT3wiaQi7Ys4O/view?usp=sharing||
The Future of Sewing is Here: Meet the Jack M5 Series.
Step into a new era of intelligent manufacturing with the Jack M5, a revolutionary platform where industrial power meets the Internet of Things. This isn't just a sewing machine; it's the central command for your entire workshop. With its groundbreaking interactive touchscreen, seamless data connectivity, and advanced automation, the M5 transforms complex production into simple, streamlined operations. Elevate your efficiency, gain real-time insights, and experience unparalleled control. The Jack M5 Series: Weaving technology into every stitch.
Key Specifications:

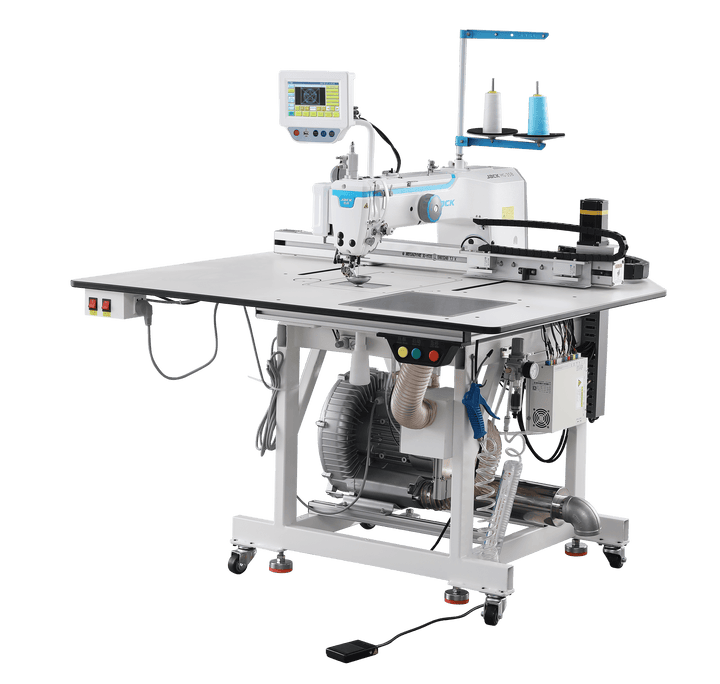

Model: Jack JK-M5+-F13F25-X Automated Sewing System
⚡ Maximum Speed: 3,500 RPM (Optimized for precision stitching)
🪡 Stitch Type: Programmable Lockstitch
📏 Stitch Length: 0.05-20 mm (Precision adjustable)
🚀 Smart IoT Platform: 🌐 Centralized management capability for production monitoring
🖥️ Interactive Control: User-friendly interface for pattern selection and diagnostics
🔗 Seamless Integration: Compatible with factory automation systems
🤖 Advanced Automation: Pneumatic thread trimming and presser foot lifting
🔇 Efficient Operation: Servo motor ensures quiet performance and energy savings
📊 Precision Engineering: Stable frame design for consistent stitch quality

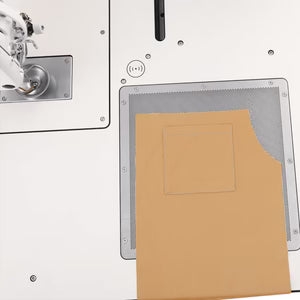

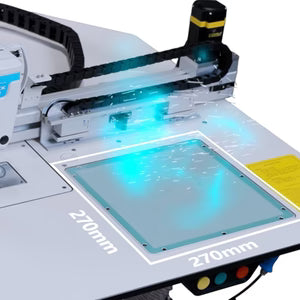

Suction plate (F25) - 270x270mm suction plate facilitates loading of the template.
Suction (F25) - Compact suction with integrated turbine.
Laser (F11A) - The compact laser (optional) allows you to expand the applications of this super versatile machine, allowing you to cut collars, cuffs, piping, vents, flaps, gloves, etc.

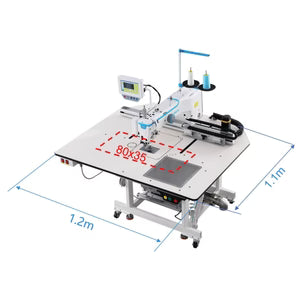

Sewing Area 80x35 - Infinite potential in just 120x110cm of space thanks to the 80x35 sewing field you can draw as if on a blank sheet of paper.
Touch Screen Panel - The panel allows you to draw any program on board the machine or import a file drawn with any CAD to the PC.
RFID reader - The operator will not even have to select the sewing program because the machine will automatically recognize the template and load the seam.
Hook 2x - The double capacity hook allows you to work with thicker yarns and sew for longer.
Jumping foot - The smart presser foot stays low longer waiting for the needle to rise to prevent stitches from skipping and breaking. It is also possible to set different heights in different sections of sewing.
Jack M5 Machines Specifications
