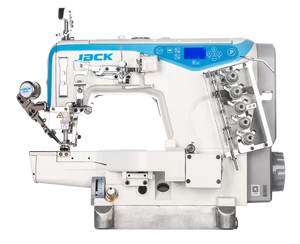

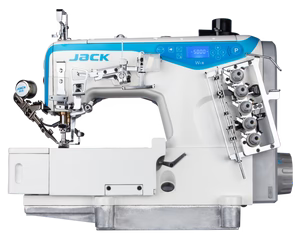

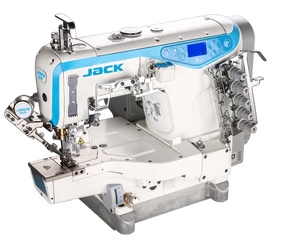

Jack K5E-UT-01GBX356/Z Computerized Cylinder Bed Interlock Sewing Machine with Thread Trimmer
Cylinder Bed Interlock
||||
Description
Experience the perfect fusion of speed, precision, and innovation with the JACK K5E Interlock Series. Designed for modern garment manufacturing, this advanced 3-needle cylinder bed machine combines powerful performance with exceptional efficiency. Its integrated Direct Drive system ensures smooth, quiet operation while significantly reducing energy consumption—making it ideal for high-volume production environments. Whether you're crafting delicate blouses, comfortable T-shirts, or stretch-intensive activewear, the K5E delivers flawless stitches for closed circuits, decorative patterns, and intricate designs. The specialized bottom differential transport system guarantees impeccable seam quality, effortlessly handling even the most challenging materials like Lycra without puckering or distortion. With customizable 3-level LED lighting and versatile configuration options, the K5E Series adapts to your unique production needs, ensuring optimal results across all your knitwear applications.
Key Specifications:
⚡ High-Speed Performance: Up to 5,500 stitches per minute for unmatched productivity
🪡 3-Needle Cylinder Bed Design: Expertly engineered for closed circuits, decorative stitching, and versatile knitwear operations
🔄 Advanced Bottom Differential Transport: Ensures precise, pucker-free seams on stretch fabrics and delicate materials
🌙 Direct Drive Motor System: Energy-efficient operation with reduced noise and enhanced reliability
💡 Adjustable 3-Level LED Lighting: Customizable illumination for superior visibility and precision
📏 6.2 mm Presser Foot Lift: Accommodates various fabric thicknesses with ease
📌 Flexible Needle Gauge Options: Standard 5.6 mm or 6.4 mm, with additional configurations available
Step Motor Foot Lifter – The presser foot lifter is controlled by a stepper motor making it twice as strong and long lasting as the old magnet.
Step Motor Thread Trimmer (-UT) – Even the thread trimmer is controlled by a stepper motor which gives it a quick response and makes it extremely silent (-6dB).
High Speed – The speed of the K5E is 5,500 rpm, compared to the 3,700 rpm of a normal machine with cover, the efficiency increases more than 50%.
Wide Adaptability on Fabrics – Ability to sew on thin fabrics, knits and up to 8 layers of fabric thickness, without any adjustment, maintaining the beauty of the stitch.
Computerized with Voice Guide – Using the machine it will teach you the various functions itself, if there are errors it will notify you and by clicking on the VOICE button it will suggest how to solve the problem, furthermore with a single key you can go back to the initial settings. (-UT only).
Standard (01)
Collarect (02)
Top Stitching (03)
Hem (08)
Back Puller (PL)
Trimming knife (35)
Industry 4.0 (Optional) – Thanks to the integrated WIFI module you can modify the parameters and control the productivity of the machine directly from the application. NB: a Jack gateway must be purchased for every 50 machines.
Jack K5E Machines Specifications
Jack K5E-UT-01GBX356/Z Computerized Cylinder Bed Interlock Sewing Machine with Thread Trimmer
