DL7200HP-BM1-16 Lockstitch Machine – Full-Function, Oil-Free with Touchscreen & Thread Trimmer

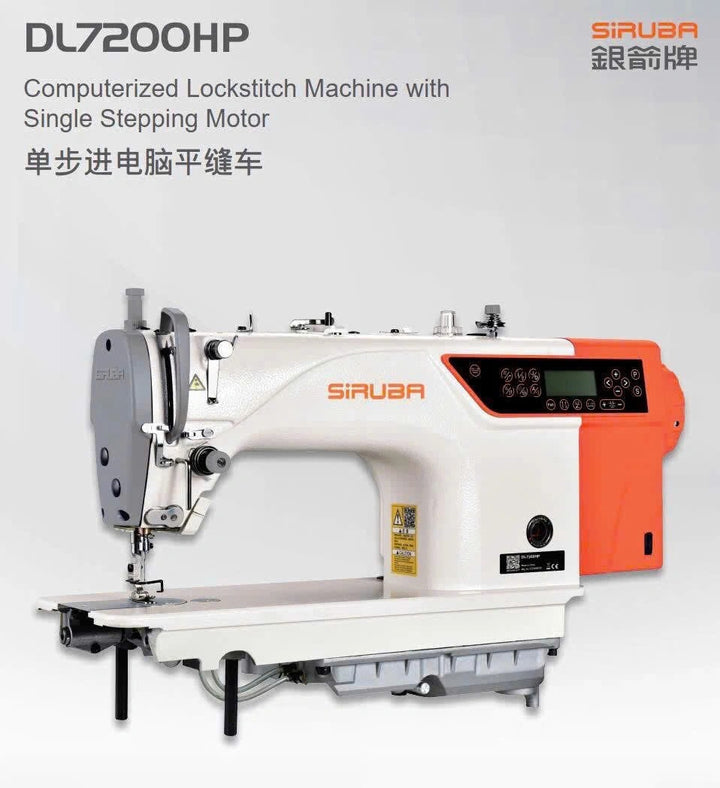

Siruba DL7200HP-BM1-16: High-Performance Lockstitch Machine with Sealed Oil Pan & Complete Program
Experience Unmatched Versatility and Clean-Operation in a Single, Automated Powerhouse.

The Siruba DL7200HP-BM1-16 redefines industrial sewing for modern workshops. This isn't just a machine; it's a "Complete Program"—a fully integrated sewing solution engineered for maximum productivity and minimal maintenance. Designed with a revolutionary Sealed Oil Pan, it is the ideal choice for demanding applications where oil stains are not an option, such as with technical fabrics, quilting, and sensitive materials.

Key Features & Benefits:
Sealed Oil Pan System: The innovative sealed lubrication system completely eliminates the risk of oil leakage and stains on your materials. This "clean-sew" feature is essential for:

Stain-Sensitive Fabrics: Quilting, outdoor gear, automotive interiors, and technical textiles.

Improved Workshop Cleanliness: Reduces mess on your worktable and finished products.

Reduced Maintenance: No more constant wiping or worrying about oil contamination.

"Complete Program" Automation: This machine comes fully equipped with a suite of automated functions that work in harmony to streamline your workflow and boost output.

Automatic Thread Trimming: Cuts both needle and bobbin threads with precision at the end of every seam.

Automatic Presser Foot Lift: Raises the foot automatically after trimming, allowing for quick and easy fabric removal and repositioning.

Automatic Needle Positioning: Ensures the needle always stops at your preset position (up or down), guaranteeing perfect seam starts and pivots.

Automatic Tack Stitch: Programs reinforced stitches at the start and end of a seam for unparalleled durability.

High-Speed Direct Drive: Powered by a built-in servo motor, it delivers smooth, responsive, and energy-efficient performance at speeds up to 5,000 SPM, driving productivity to new heights.

Technical Specifications
Category    Specification
Model    Siruba DL7200HP-BM1-16
Sewing Type    Single Needle, Lockstitch (Class 301)
Maximum Speed    5,000 SPM
Drive System    Direct Drive (Integrated Servo Motor)
Lubrication    Sealed Oil Pan (Oil-Free Sewing Area)
Stitch Length    Adjustable, up to 5 mm
Presser Foot Lift    13 mm (Automatic)
Automation Package    Complete Program including Auto Thread Trim, Auto Back-Tack, Auto Foot Lift, and Auto Needle Position.
Ideal For    Quilting, technical textiles, automotive interiors, outdoor gear, luggage, and other stain-sensitive applications.
